The Howo mining dumper is built on the Howo heavy 6x4 drive chassis, equipped with WP10.340E201 diesel engine and a HW19710 10-speed gearbox. It has strong power performance and can adapt to complex working conditions. Its core function is to control the tilting of the cargo box through a hydraulic lifting system, enabling rapid and automatic unloading of bulk materials such as sand, gravel, coal, and ore. Balancing powerful performance with adaptability to complex working conditions.
Рабочая мощность :
30 tonsТип каюты :
Howo single cabin, with one sleeperСистема привода :
6x4Колесная база (мм) :
4600+1350Специфика двигателя :
WP10.340E201Коробка передач :
HW19710, 10 forwards & 2 reversesПередняя ось (кг) :
7500Задняя ось (кг) :
13000*2The Howo 30 Ton tandem axle dumper truck is built on the Howo heavy 6x4 drive chassis, equipped with WP10.340E201 diesel engine and a HW19710 10-speed gearbox. It has strong power performance and can adapt to complex working conditions. Its core function is to control the tilting of the cargo box through a hydraulic lifting system, enabling rapid and automatic unloading of bulk materials such as sand, gravel, coal, and ore. Balancing powerful performance with adaptability to complex working conditions.
It is one of the core pieces of equipment in the engineering transportation field. The vehicle's overall design revolves around heavy-duty requirements, while also considering practicality and ease of operation. It can meet the needs of various high-intensity, high-frequency material handling operations and is suitable for engineering operations in multiple scenarios.

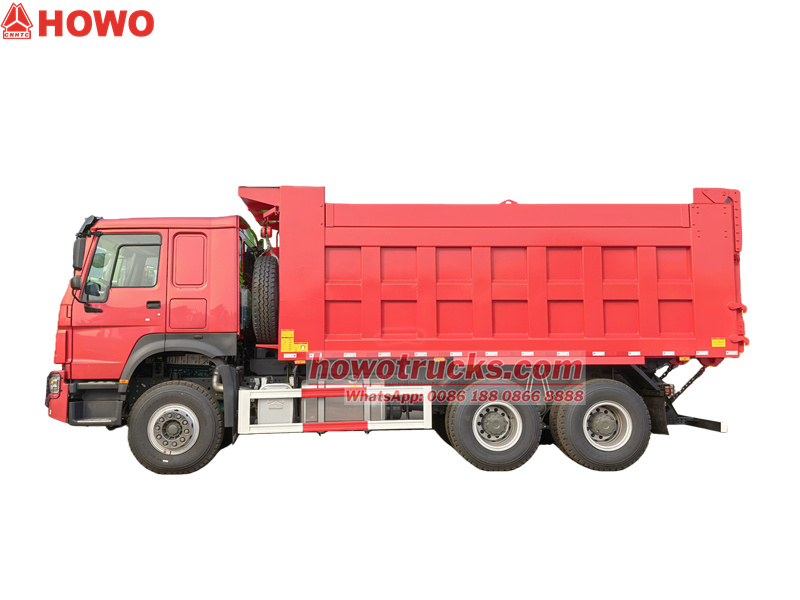

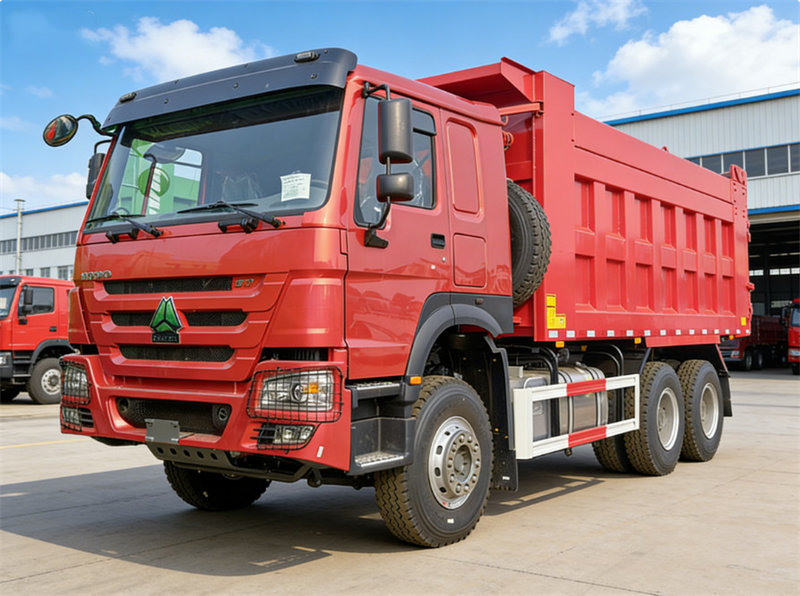

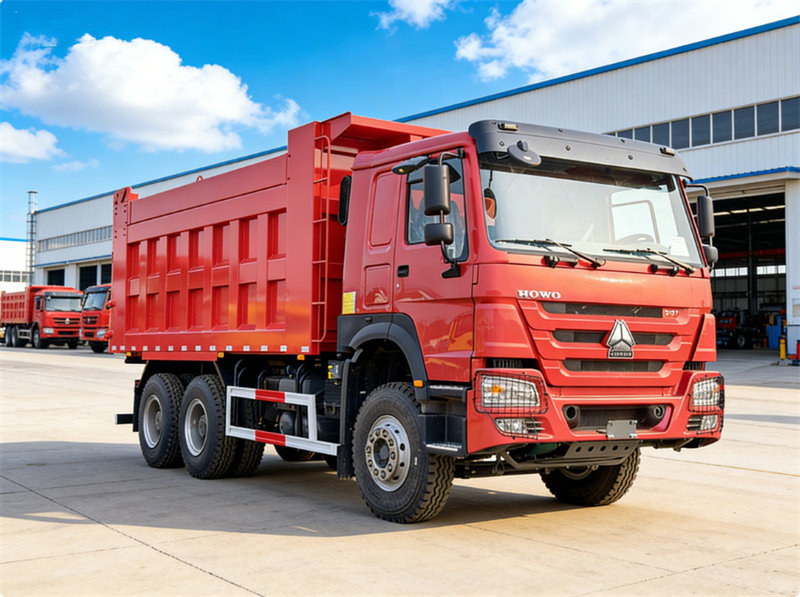

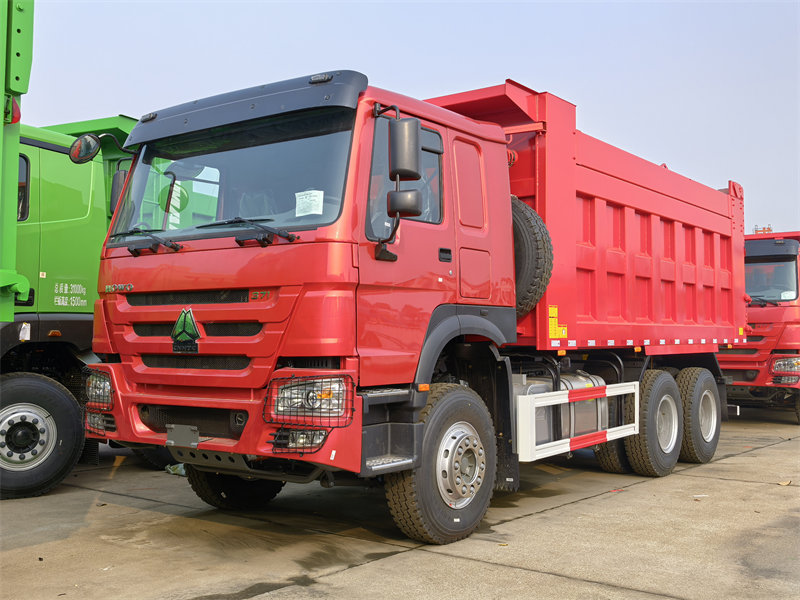

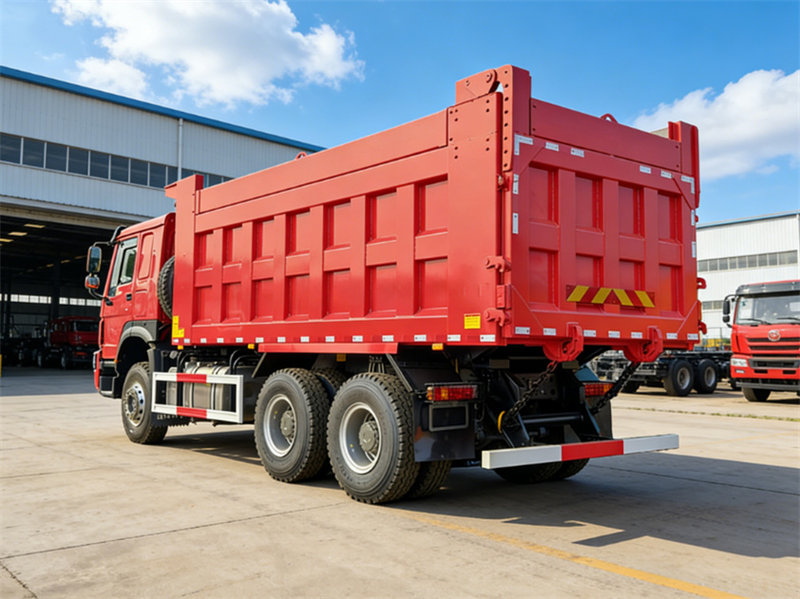

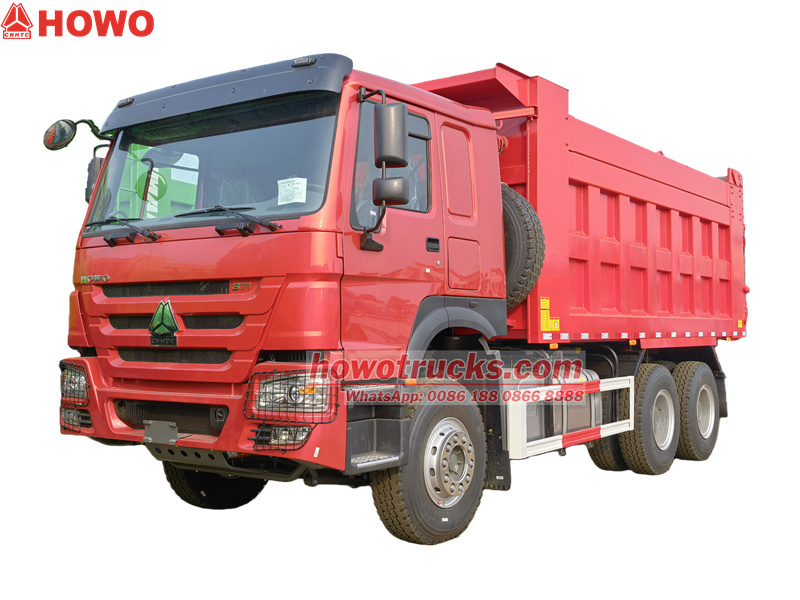

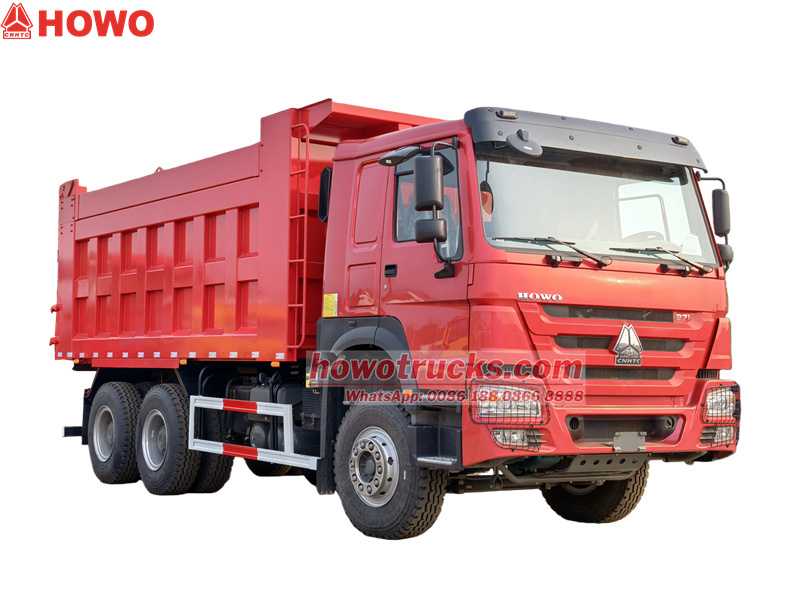

*Howo Heavy 6x4 Mining Dumper Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
●Payload Capacity: Up to 30 tons, ideal for mining and construction.
●Engine: 340 HP diesel engine for high performance and fuel efficiency.
●Chassis: Reinforced steel frame for durability in harsh conditions.
●Cabin: Ergonomic design with air conditioning and safety features.
✦ Ⅱ.Parameter For Howo 6x4 Dumper Truck « « «
|
HOWO Heavy 340HP Dump Truck |
|||
|
Vehicle parameters |
|||
|
Overall dimensions |
9650x2550x3500mm |
GVW |
41000kg |
|
Van dimensions |
5300x2300x1200mm |
Loading capacity |
30000kg |
|
Chassis parameters |
|||
|
Chassis brand |
HOWO |
Wheel base |
4600+1350 mm |
|
Drive type |
6x4,LHD |
||
|
Cab |
Configuration |
HOWO cab, allowable 3 passengers,USB radio interface |
|
|
Color |
According to customer wish |
||
|
Engine |
Model |
WP10.340E201 |
|
|
Emission |
Euro 3 |
||
|
Type |
Inline six-cylinder, electronically controlled high-pressure common rail + SCR |
||
|
Horse power |
340HP |
||
|
Displacement |
9.8 L |
||
|
Max torque |
1250N.m |
||
|
Tire |
Size |
12.00R22.5 |
|
|
Number |
10+1 |
||
|
Transmissions |
HW19710 transmission, 10 speed forward 2 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Dump truck structure parameters |
|||
|
Van body dimensions |
5300x2300x1200 mm |
Side wall |
8 mm |
|
Bottom plate |
10mm |
Van body material |
Carbon steel |
|
Lifting position |
Front lifting |
Dumping direction |
Rear |
|
Color and Logo |
Optional |
Lifting angle |
≥45° |
|
Standard configuration |
chassis,sub frame, domestic middle lifting hydraulic cylinder, two longitudinal beams,rectangular van body,single door |
||

✦ Ⅲ.Advantage For Howo Dumper Truck « « «

♦ The Howo 6x4 duty dump truck adopts a standardized and modular design concept.
♦ Its core power components, including the WP10.340E201 engine, HW19710 transmission, and chassis components.
♦ All HOWO-exclusive parts, ensuring stable quality and high versatility, facilitating future maintenance and parts replacement.

♦ The body structure features a reinforced design.
♦ The cargo box is made of Q235 carbon steel with a 10mm thick floor and 8mm thick side panels.
♦ Effectively resisting the impact and wear of bulk materials and extending the dumper box's service life.

♦ The cab is equipped with a standard HOWO cab that accommodates three people and includes a USB radio interface, meeting the basic needs of the driver and passengers.
♦ It also features a dual-lever control module integrating lifting, lowering, and emergency stop functions.

♦ Customization space is reserved during production. The body color can be customized according to customer requirements.
♦ While maintaining standardized core configurations, relevant auxiliary configurations can be flexibly adapted to meet the needs of different operating scenarios.

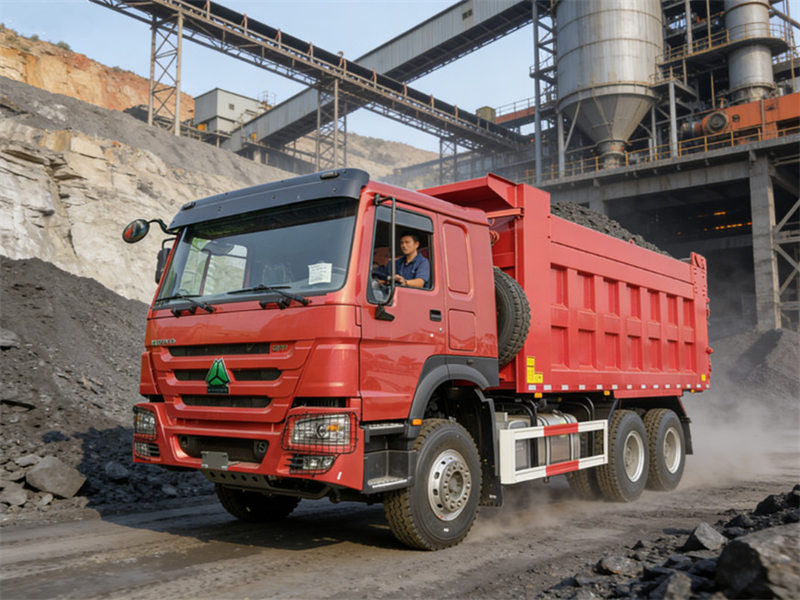

1. Short-distance transport of bulk materials such as coal and ore within mines. Mine roads are often bumpy, muddy, and unpaved, requiring frequent uphill climbing and heavy-load starts and stops. The Howo 6x4 drive system and powerful output easily adapt to the complex road conditions of mines.

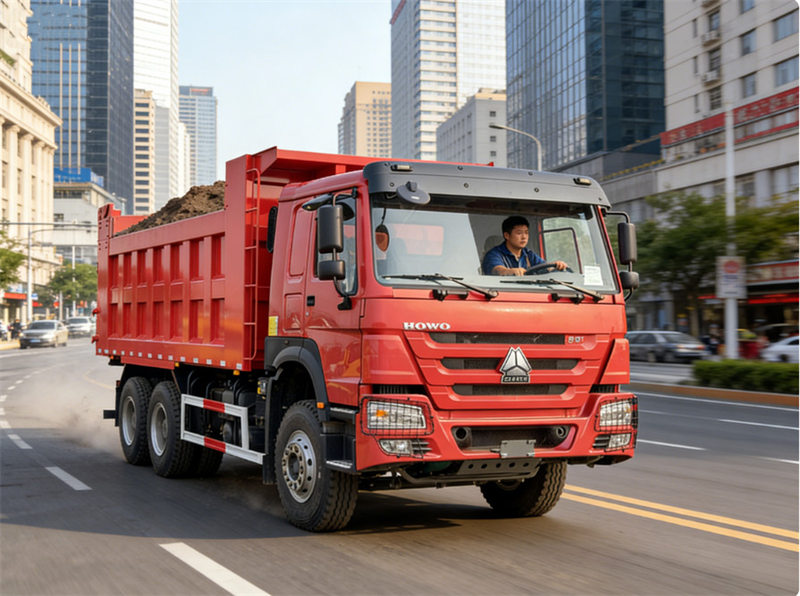

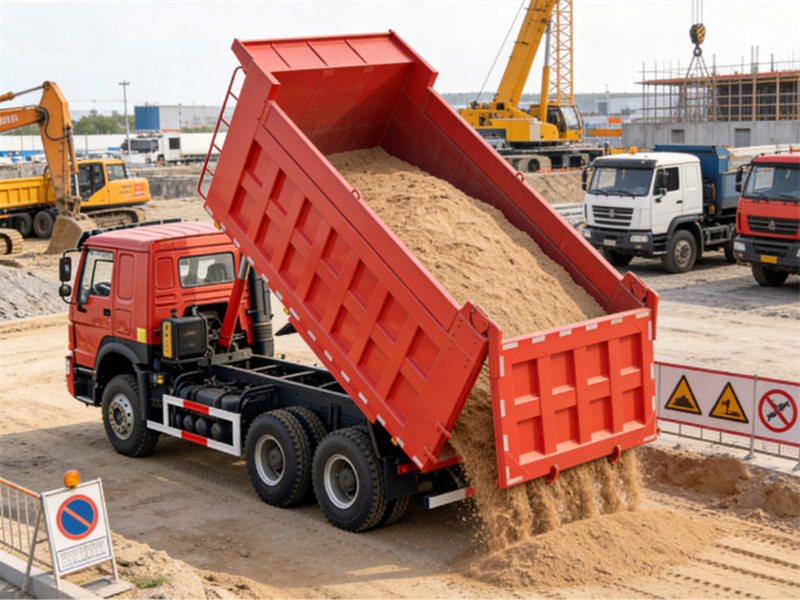

2. Transport of materials such as sand, gravel, cement, and slag at construction sites, including real estate development, road construction, and bridge construction. These sites require frequent loading and unloading of materials and short-distance transportation. The vehicle's efficient unloading function can quickly complete material dumping.

3. Material sorting and transport in areas such as sand and gravel pits, crushing plants, and building material yards. These scenarios require vehicles with strong loading capacity and continuous operation capabilities, enabling batch material transport, combined with a rapid unloading function.
