The Howo TX 460HP dry powder pumper fire apparatus is a multi-functional emergency rescue equipment built by CS Trucks Group based on the Sinotruk Howo TX dual chassis. It integrates powerful performance, efficient fire extinguishing system and reliable safety performance, and is designed to deal with various complex fire scenarios. It can be widely used for fire fighting and emergency rescue in factories, warehouses, petrochemical plants, power facilities and other places.
Рабочая мощность :
6000LТип каюты :
Howo TX double cabinСистема привода :
6x4Колесная база (мм) :
4600+1350Специфика двигателя :
340 Hp / WP10.340E22Коробка передач :
HW19710,10 forwards & 2 reversesПередняя ось (кг) :
7500Задняя ось (кг) :
13000*2The fire fighting truck is based on the Howo TX reinforced chassis and equipped with a mature Weichai WP10.340E32 engine. It features a 6x4 drive system and a 10-speed transmission, balancing power output and driving stability. It can adapt to various complex road conditions, including rough, slippery, and unpaved surfaces, with a maximum speed of 95 km/h. It can quickly respond to emergency rescue commands, buying valuable time for fire fighting.
Regarding the fire extinguishing system, the truck achieves coordinated operation of dry powder and water systems. It is equipped with a 3000L carbon steel dry powder storage tank, nine 80L high-pressure nitrogen cylinders, and a 3000L carbon steel water tank. Combined with a high-efficiency fire pump and a long-range fire monitor, it can flexibly respond to different types of fires. The vehicle is also equipped with a full set of standard rescue equipment and offers various optional configurations to meet multiple needs, including fire extinguishing, rescue, and cooling.

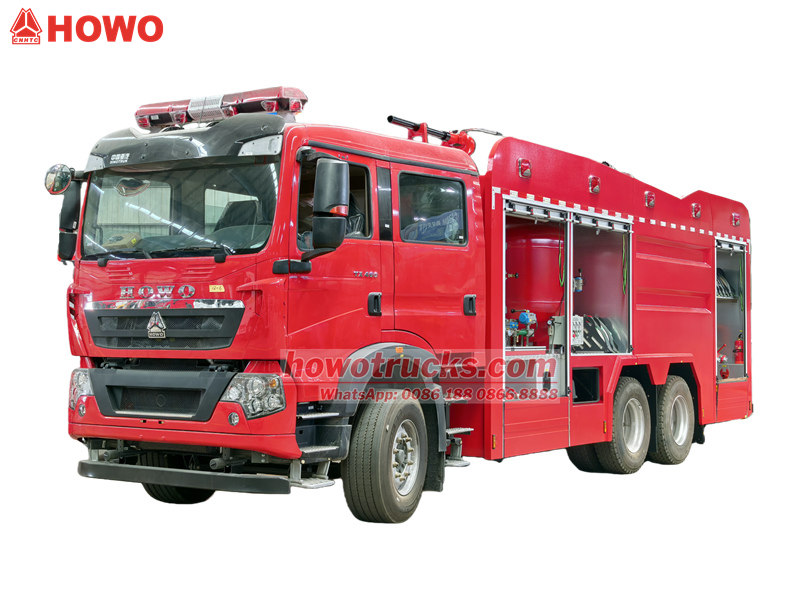

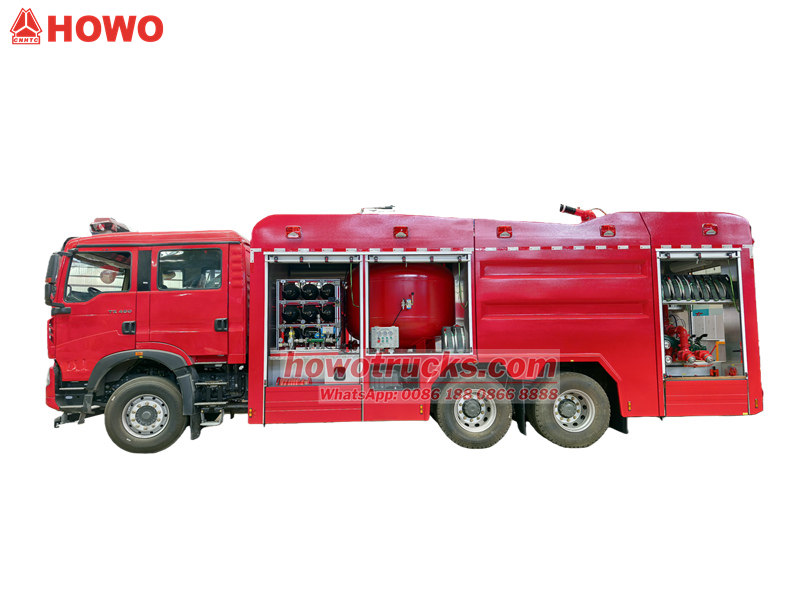

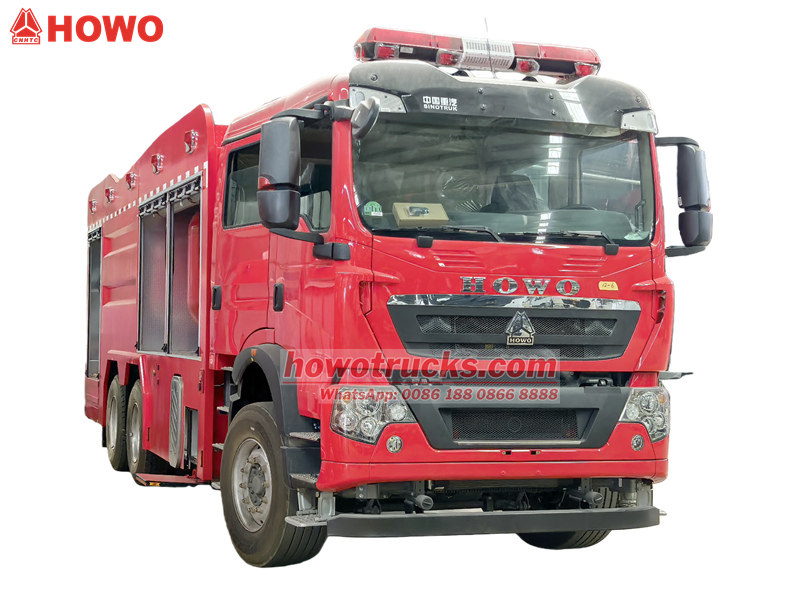

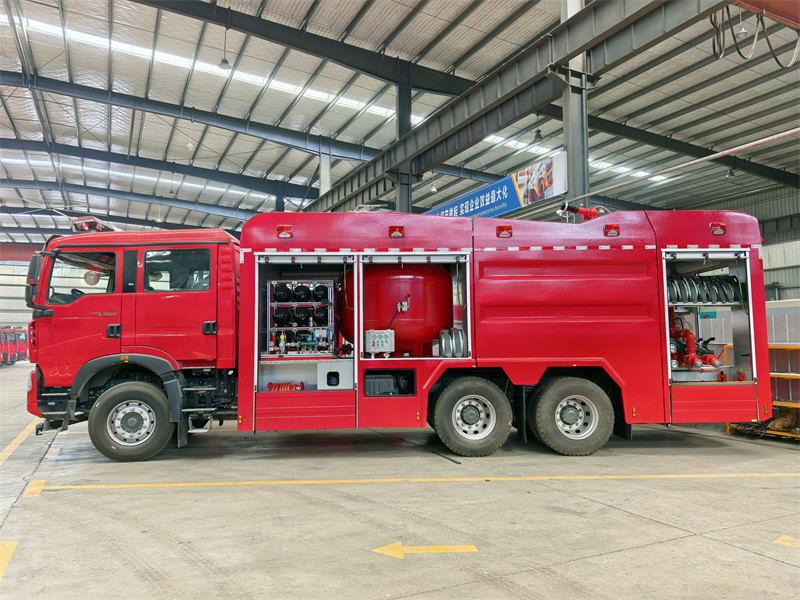

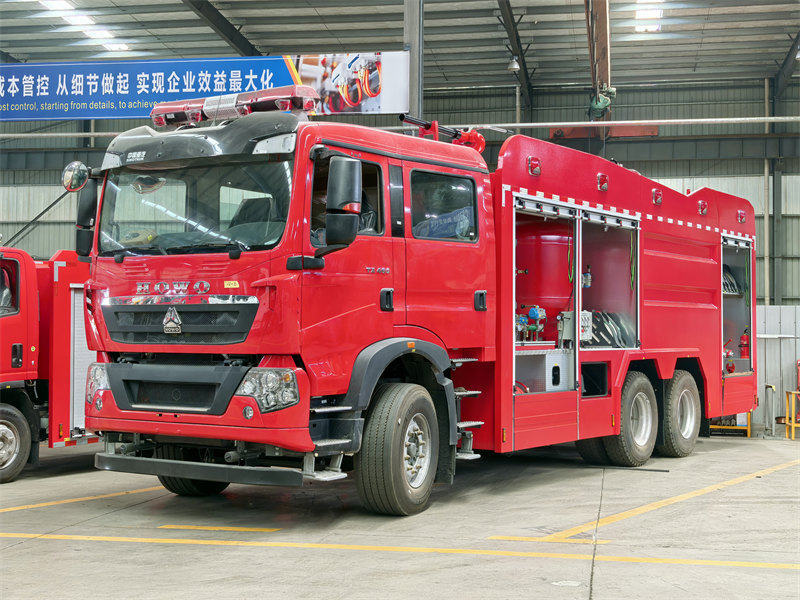

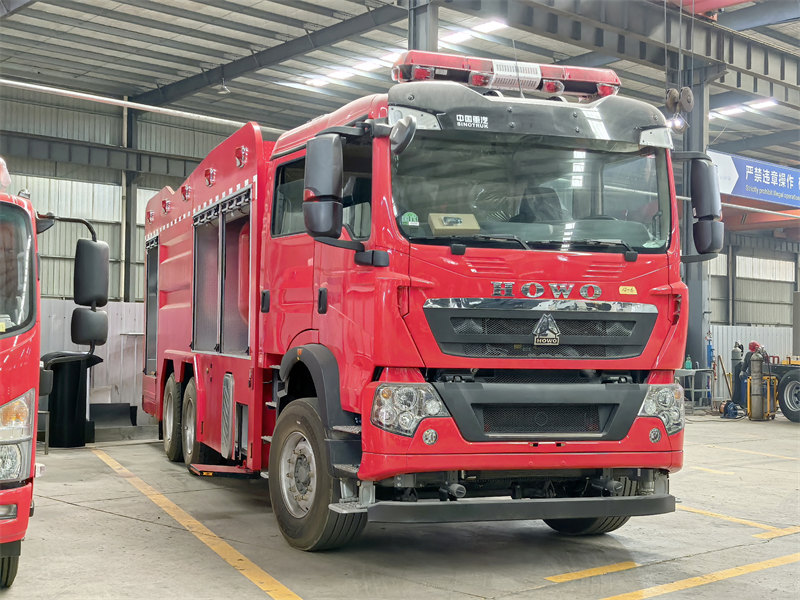

*Howo TX heavy fire fighting truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CS Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model
WP model with 340HP and Euro 2,3
2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump: CB10/80-XZ centrifugal fire pump, flow rate 80L/s, working distance over 85m
Optional CB10/60, CB10/140 also available Darley fire pump
5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
|
Howo 6x4 Heavy Dry Powder Fire Truck |
|||
|
General |
Vehicle Brand |
CS Trucks Group |
|
|
Chassis Brand |
Howo |
||
|

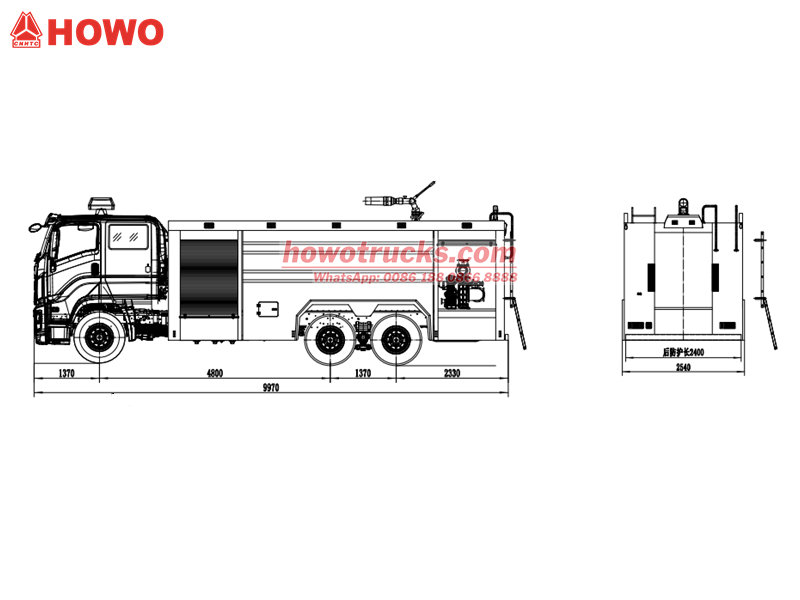

Overall Dimension |
10300*2670*3550mm |
||
|
GWW/ Kerb Weight |
25,000kg/11,820kg |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
Weichai engine ,WP10.340E32 |
||
|
Power |
340HP (257kw) |
||
|
Displacement |
9.839L |
||
|
Emission Standard |
Euro 3 |
||
|
Chassis |
DriveType |
6X4,left hand drive |
|
|
Transmission |
HW 10 speed forward, 2 reverse |
||
|
Wheelbase/No.of axle |
4350+1375 mm |
||
|
Tyre Specification |
12.00R22.5 |
||
|
Tyre Number |
10 tyres and 1 spare tyre |
||
|
Max Speed |
95km/h |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Dry Powder |
3000L |
1 pcs |
|
TankMaterial |
Carbon steel |
||
|
Nitrogen Gas Bottle |
Material |
37Mn |
|
|
Capacity |
80 Litres |
||
|
Quantity |
9 |
||
|
Design pressure |
15MPa |
||
|
Fire Pump |
Drive mode |
PTO |
|
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
80-120 kg/s |
||
|
Fire Cannon |
Flow speed |
60-100 kg/s |
|
|
Range |
40-60 m |
||
|
Water Tank Capacity |
3,000 Litres |
||
|
Tank Material |
carbon steel |
||
|
Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
45L / s |
||
|
Suction Height |
9m |
||
|
Fire Cannon |
Flow speed |
45L /s |
|
|
Range |
65 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|
All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars... |
|||
|
Optional |
** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional |
||

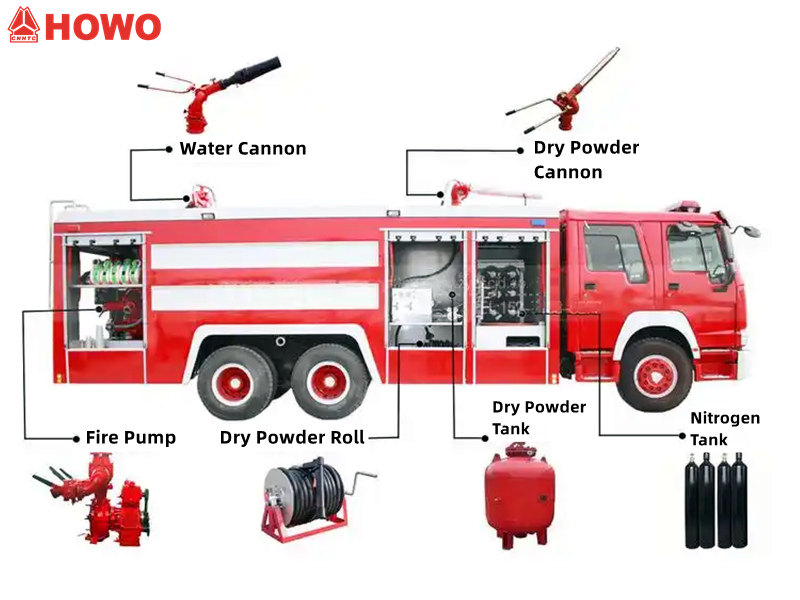

✦Ⅲ.Functional Structure For Howo TX fire fighting truck «««

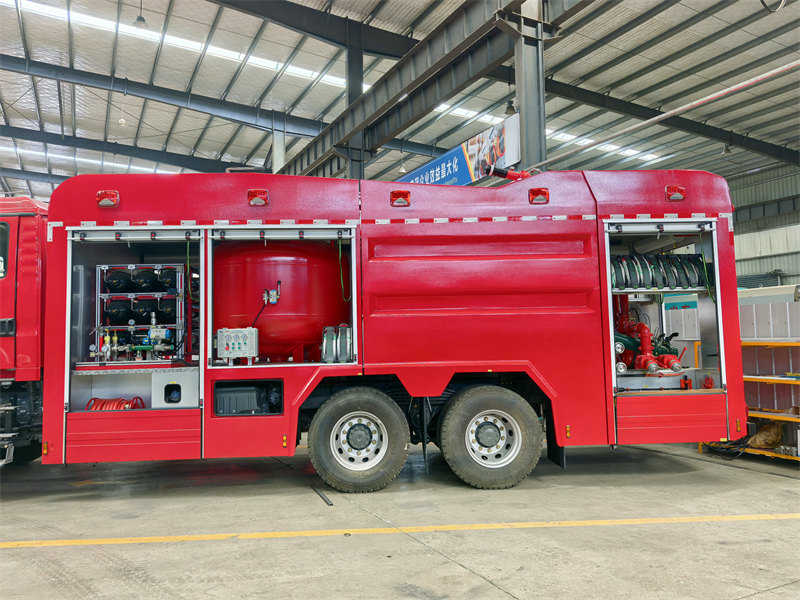

Dry Powder Fire Extinguishing System:

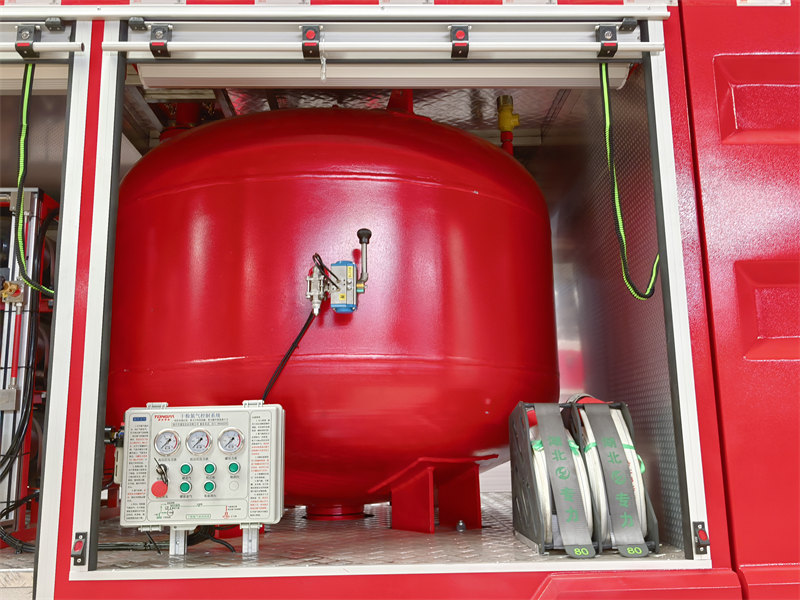

♦ Equipped with a 3000L carbon steel dry powder storage tank, providing ample reserves for sustained, long-term spraying.

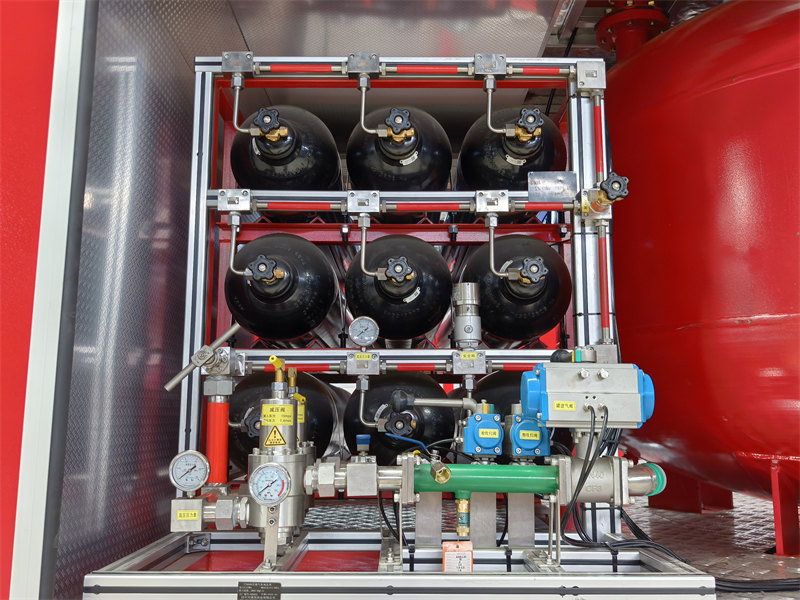

♦ Combined with nine 80L 37Mn nitrogen cylinders, designed to withstand pressures up to 15MPa.
♦ High-pressure nitrogen atomizes the dry powder at a rate of 60-100kg/s, providing wide coverage.
♦ It can rapidly smother and chemically suppress fires, suitable for Class A (solid), Class B (liquid, gas), and Class C (electrical) fires.
|
Dry Powder System |
|
|
Model |
R25-303 |
|
Pressure Vessel |
Ⅱ |
|
Design Pressure |
1.76MPa |
|
Pressure Test Pressure |
2.2MPa |
|
Design Temperature |
50° |
|
Net Weight of Vessel |
1345 kg |
|
Capacity |
3.0 CBM |
|
Nitrogen Cylinder Group |
|
|
NO of Nitrogen Cylinder |
9 |
|
Capacity |
80L |
|
Working Pressure |
≤15Mpa |

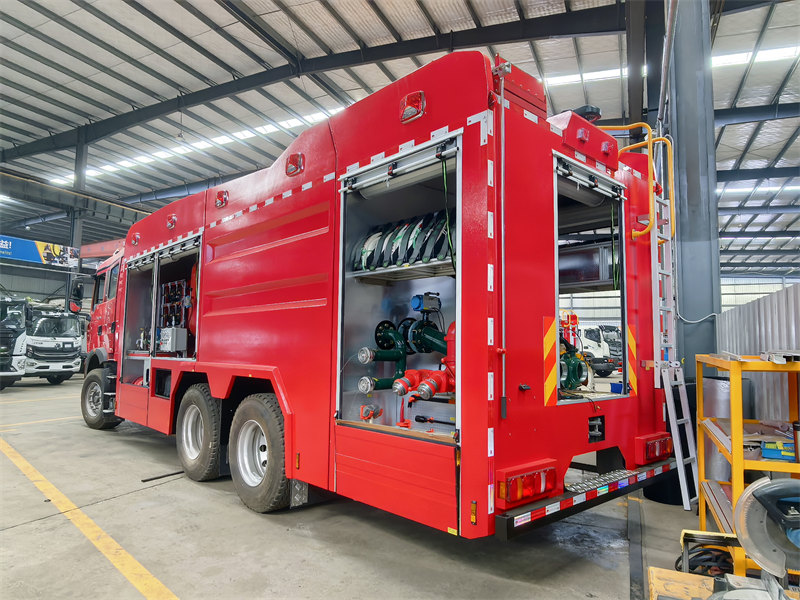

Water & Foam Fire Extinguishing System:
♦ Equipped with a 3000L carbon steel water tank and a top-tier domestic brand fire pump
♦ Utilizes PTO drive mode, automatic priming, pressure range 1.6-2.5MPa
♦ Flow rate up to 45L/s, suction height 9m, priming time ≤10s

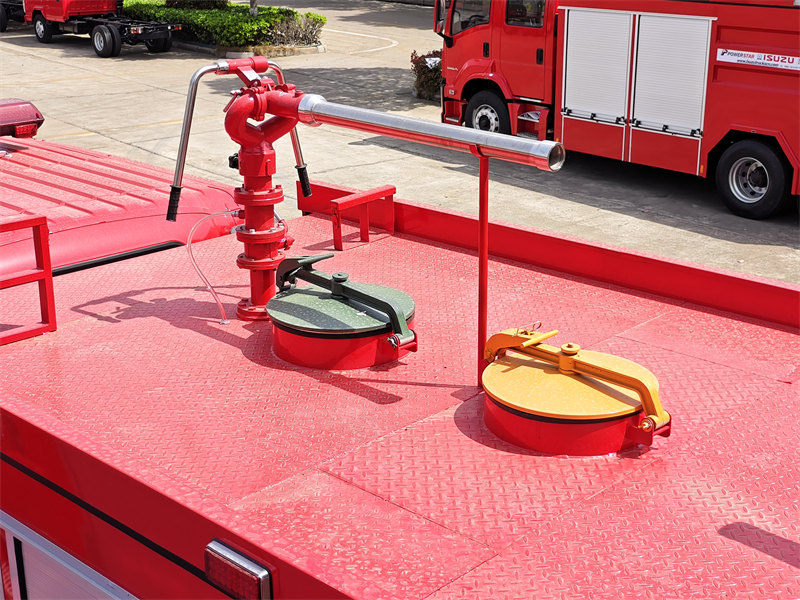

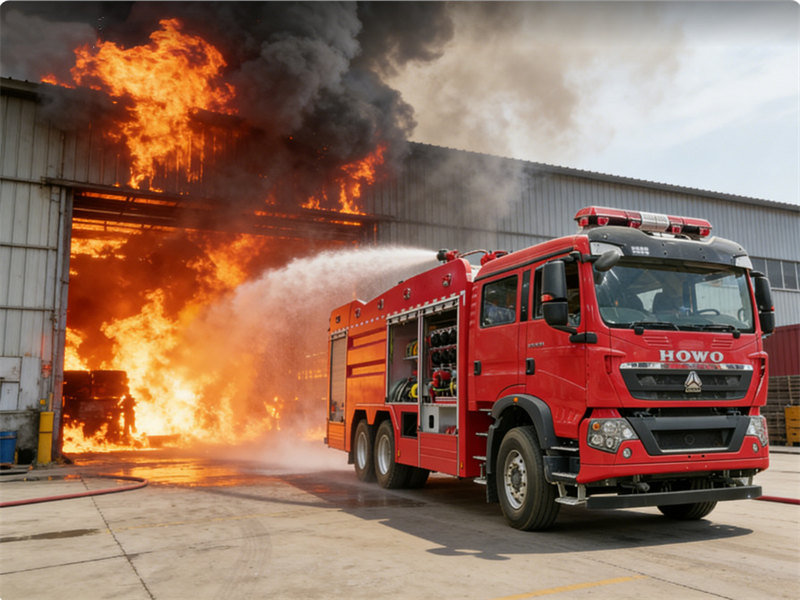

♦ Long-range fire monitor with a range of up to 65 meters, allowing firefighters to operate at a safe distance and avoid direct contact with the fire source.
|

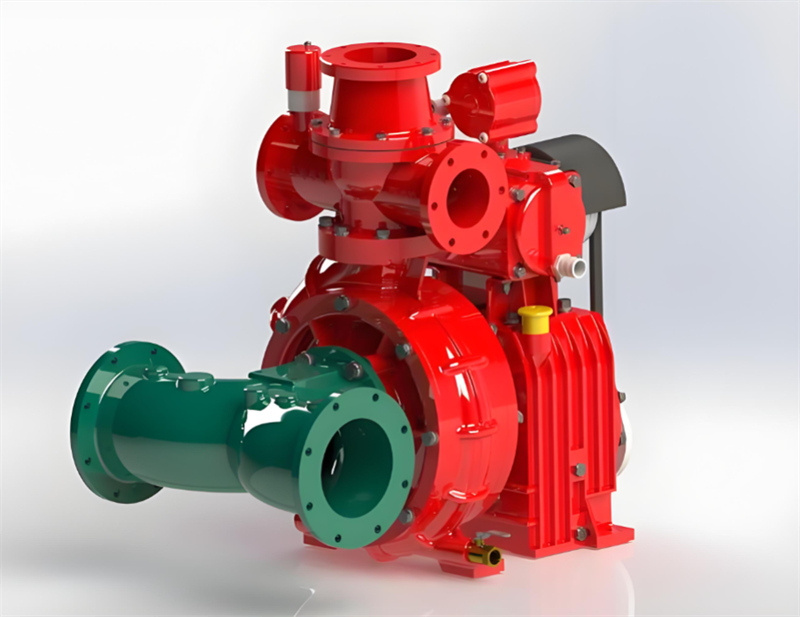

Fire pump Model |
Pressure |
Max working pressure |
Flux |
Rated speed |
Speed Ratio |
Max pressure |
Priming Time |
Head |
|
CB10/80-XZ |
1.0MPa |
1.380MPa |
80L/s |
3300±3435r/min |
1:1.54 |
≥0.40MPa |
≤10s |
40m |
1. Powerful Engine and Superior Chassis：
♦ The 6x4 configuration provides exceptional traction and load-bearing capacity, making it ideal for operation in accident scenes such as factories and warehouses on rough, slippery, or unpaved roads.
♦ The Howo TX cabin chassis is reinforced to reliably support heavy-duty equipment (dry powder systems, water tanks, nitrogen cylinders), ensuring stability and safety during driving and operation.
♦ The Weichai WP10.340E32 engine is a proven and mature engine with high torque and excellent low-speed torque characteristics, making it ideal for fire trucks that require frequent starts, acceleration, and continuous operation.
♦ The HW 10-speed transmission features closely spaced gears, allowing the driver to precisely select the appropriate gear based on road conditions and load, ensuring smooth and efficient power delivery.
2. Comprehensive and Practical Configuration：
♦ The cab can accommodate 2+4 people and is equipped with air conditioning, providing a comfortable working environment for rescue personnel.
♦ The superstructure has a complete electrical system, and the cab roof is equipped with a long row of warning lights and an siren.
♦ Strobe lights, LED lights, and yellow warning lights are installed on both sides of the truck bed, the roof, and the steps, respectively.
♦ Comprehensive protection ensures warning and lighting needs during operations, improving safety at night and in complex environments.
♦ The vehicle is equipped with a full set of standard fire and rescue equipment, including shovels, crowbars, axes, and cutting equipment.
China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
The Howo TX 460HP dry powder pumper fire apparatus is a multi-functional emergency rescue equipment built by CS Trucks Group based on the Sinotruk Howo TX dual chassis. It integrates powerful performance, efficient fire extinguishing system and reliable safety performance, and is designed to deal with various complex fire scenarios. It can be widely used for fire fighting and emergency rescue in factories, warehouses, petrochemical plants, power facilities and other places.
