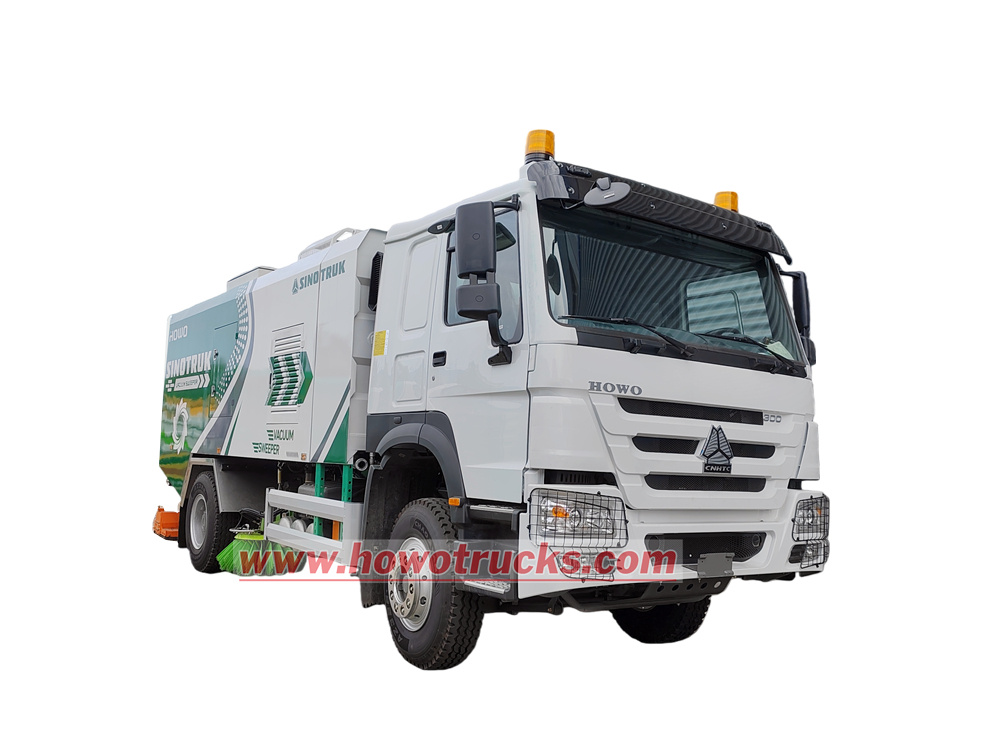

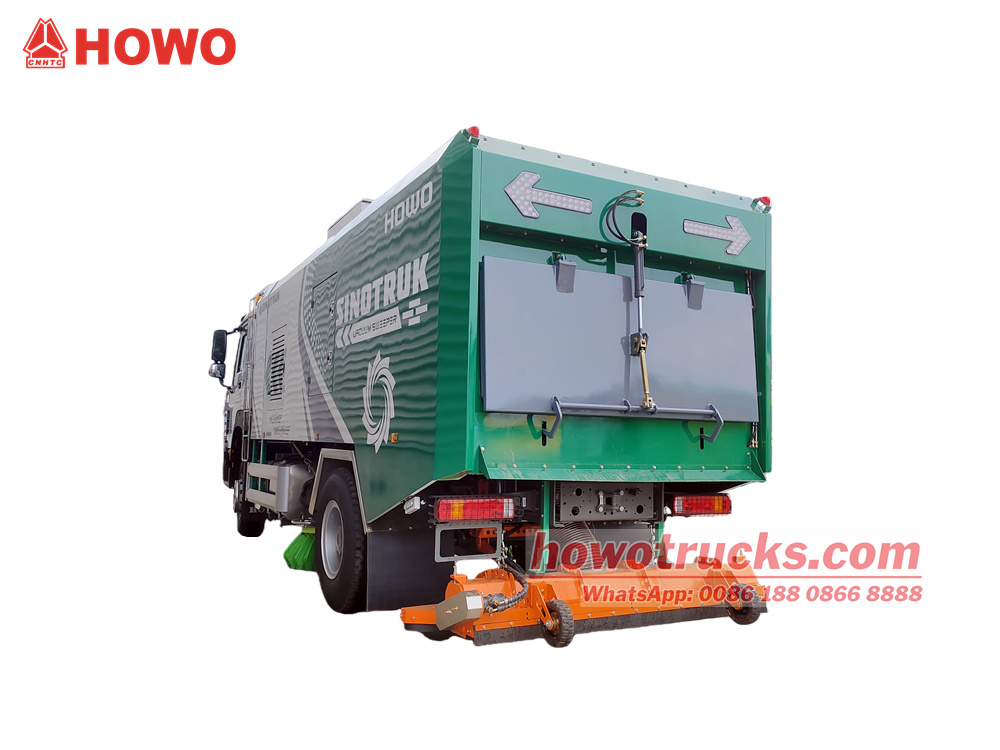

HOWO 300HP 10cbm vacuum sweeping truck

The HOWO 10 cubic meter sweeper truck features an HW76 cab, a WEICHAI WP10.300E22 diesel engine, an HW19710 gearbox, a Dongfeng Cummins B140 33 auxiliary engine (140HP), an 8 cubic meter garbage bin, a 2 cubic meter water tank, a Weiye blower, two centrally mounted sweeping brushes, and a rear-mounted sucker. It boasts a sweeping width exceeding 3.5 meters and an operating speed of 5-20 km/h. The cab is equipped with an electrical control box, and the rear features a tailgate switch and a control box for lifting and lowering the garbage bin.

  • Рабочая мощность :

    2000L water tank,8000L dust bin
  • Тип каюты :

    HOWO HW76
  • Размеры (мм) :

    8260x2500x3100
  • Система привода :

    4x2
  • Колесная база (мм) :

    4600
  • Специфика двигателя :

    300HP/WEICHAI WP10.300E22
  • Коробка передач :

    SINOTRUK HW19710 10-shift, Manual
  • Передняя ось (кг) :

    6500
  • Задняя ось (кг) :

    11500
  • Примечание :

    work capacity available
Новые продукты

The HOWO 300HP 10cbm vacuum sweeping truck is a multi-functional sanitation vehicle integrating sweeping, washing, and vacuuming. It is suitable for mechanized cleaning operations on large areas of paved roads, such as urban main roads, national and provincial highways, and industrial parks. The vehicle is equipped with a Weichai 300hp main engine and a Cummins 140hp auxiliary engine, with independent power systems ensuring no interference between driving and operation. The upper structure features an 8-cubic-meter garbage bin and a 2-cubic-meter water tank, with two centrally located sweeping brushes and a rear suction nozzle, achieving a sweeping width of over 3.5 meters and an operating speed of 5-20 km/h.

HOWO 300HP 10cbm vacuum sweeping truck

Product Parameters:

HOWO 10cbm vacuum sweeper truck

Sweeper Truck Main Specification

  Chassis Brand

SINOTRUK HOWO

  Overall dimensions (L x W x H)

8260x2500x3100 mm

  Drive Type

4x2 Left hand drive, 6 wheels

  Wheelbase

4600mm

  Cabin

HOWO HW76 chassis cab, with A/C, 2 seats and a sleeper,



  Weight

GVW

18000kg

Kerb weight

9530kg



  Engine

Model

WEICHAI WP10.300E22

Horsepower

300HP/220Kw@2200rpm

Emission standard

Euro 2,9.7L

  Transmission

Manual

SINOTRUK HW19710 10-speed

  Tire

295/80R22.5

6+1 spare tire

Upper Structure Parameter

  Volume of water tank

2000L

  Volume of Dustbin

8000L

  Material

water tank: carbon steel

garbage tank: inner stain steel,outer carbon steel

  Hydraulic valve

Taiwan famous brand

  Hydraulic motor

Domestic famous brand

  Switch

Schneider control switch













Auxiliary engine

Brand

Dongfeng Cummins B140 33

Type

Inline 4 cylinders, supercharged and intercooled,diesel

Horsepower

140HP

Rated Power/Max Net Power

103/101Kw

Allowed altitude limit

3000m

Rated speed

2500rpm

Ldle Speed

750r/min

Max torque

502N.m

Displacement

3.9L

Fuel rate at rated HP

88mm³/strcke

Emission standard

Euro 3





Sweeping Technical

Max sweeping width (mm)

3.5m

Max. sweeping capacity

60000m3/h

Sweeping speed

3-20km/h

Cleaning efficiency

≥98%

Max. particle inhalation

110mm

Disc plate brush extension size

≥400mm

Garbage tank door max. discharge angle

≥50°





Sweeping system

   Type

2 pcs brushes mounted in the medium, and 1 sucking disc at the rear,it is driven by the hydraulic motor, speed is adjustable, can be independently controlled, has automatic avoidance function

Sweeping brush diameter

Φ850mm

   Sweeping disk speed

110r/min high-speed, 80r/min medium speed,50r/min low-speed

Sweeping disk dip angle adjust

forward 4 ° ~ 6 ° extroversion 4 ° ~ 7 °



Sucking disc

Type

Double suction hole, hydraulic control, spring suspension

Suction hole diameter

180mm

Suction disc width

2400mm





Hydraulic system

Type

Open type, electrical control

Main components

Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve

Pressure

16Mpa

Hydraulic oil volume

60L

Oil temperature

60°C

Water spraying system

Components

Pump, nozzle(front flush and back sprinkle), water filter, etc.



Low pressure water system

Model

Hangzhou Weilong 60/90

Flow rate

60m3/h

Lift

90m

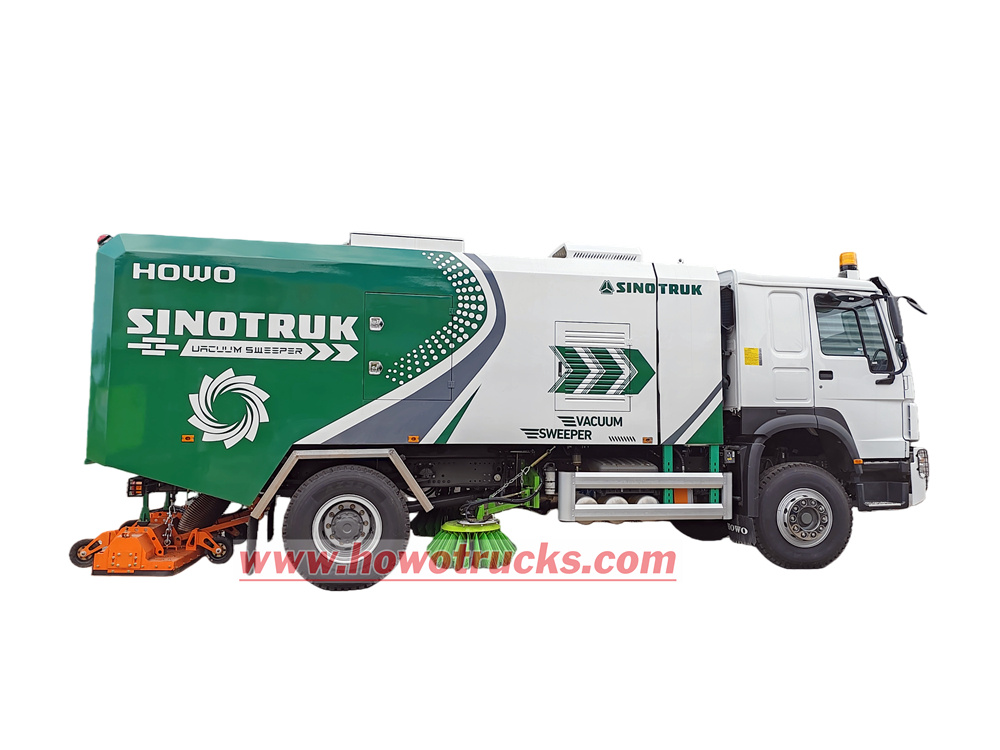

2026 year HOWO municipal street vacuum sweeper truck

▶ Core Power System:



HOWO new 10cbm vacuum sweeper truck

Main Engine: Equipped with a Weichai WP10.300E22 diesel engine, 9.726L displacement, 300HP maximum horsepower, meeting China II emission standards, and matched with an HW19710 gearbox with 10 forward gears + 2 reverse gears.



• Auxiliary Engine: Equipped with a Dongfeng Cummins B140 33 diesel engine, with a power of 140 hp (103kW), providing an independent power source specifically for sweeping and cleaning operations. The separate design of the main and auxiliary engines ensures that driving and operation do not interfere with each other. The auxiliary engine independently drives the fan, water pump, and other upper structure components, resulting in high operating efficiency and strong reliability.



▶ Tank Capacity:

SINOTRUK HOWO vacuum sweeper truck with brush

Dust Bin: 8 cubic meters, for collecting a mixture of garbage, dust, and wastewater generated during sweeping operations.



Water Tank: 2 cubic meters, providing water for cleaning operations.



▶ Operating Device and Core Components:

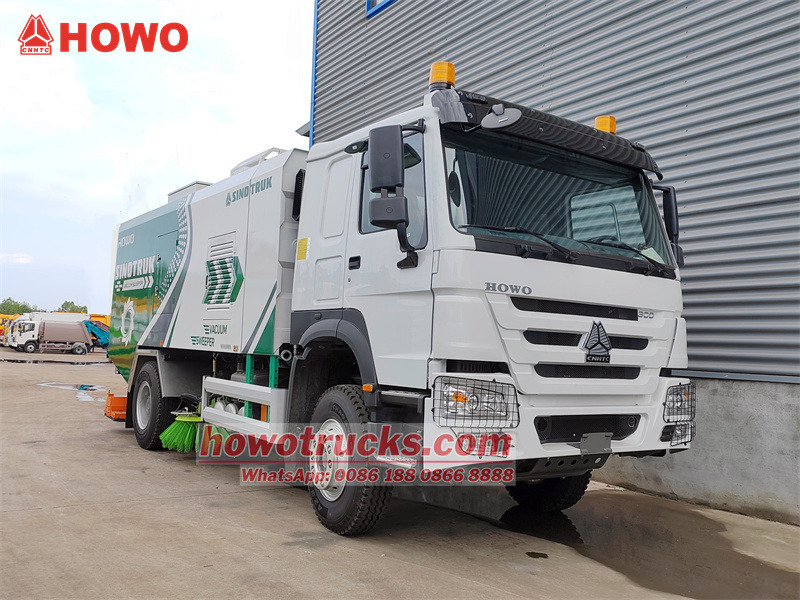

HOWO 10 Cubic Meters Vacuum Cleaner Cleaning Sweeping

• Sweeping Brushes: Two centrally located brushes with adjustable angles; sweeping width: ≥3.5 meters; large coverage area per operation; operating speed: 5-20 km/h; equipped with a spray system on the brushes.

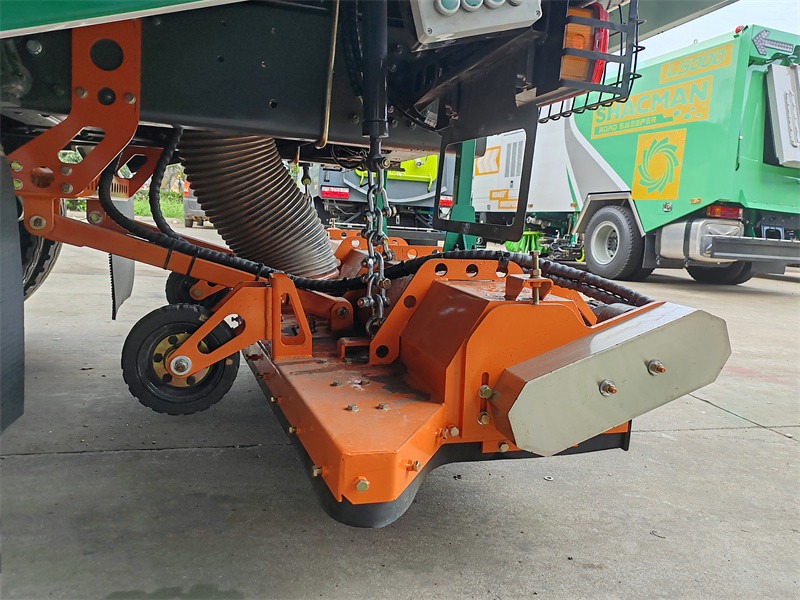

Suction Cup Device: One suction cup at the rear for negative pressure suction of garbage and wastewater collected by the brushes.



Fan: Utilizes a Weiye fan, providing strong suction for the negative pressure dust collection system, ensuring efficient extraction of garbage and wastewater into the garbage bin.



Low-Pressure Water System: Equipped with a Hangzhou Weilong 60/90 low-pressure water pump, providing water flow to the brushes to effectively wash away stubborn stains and attachments from the road surface.

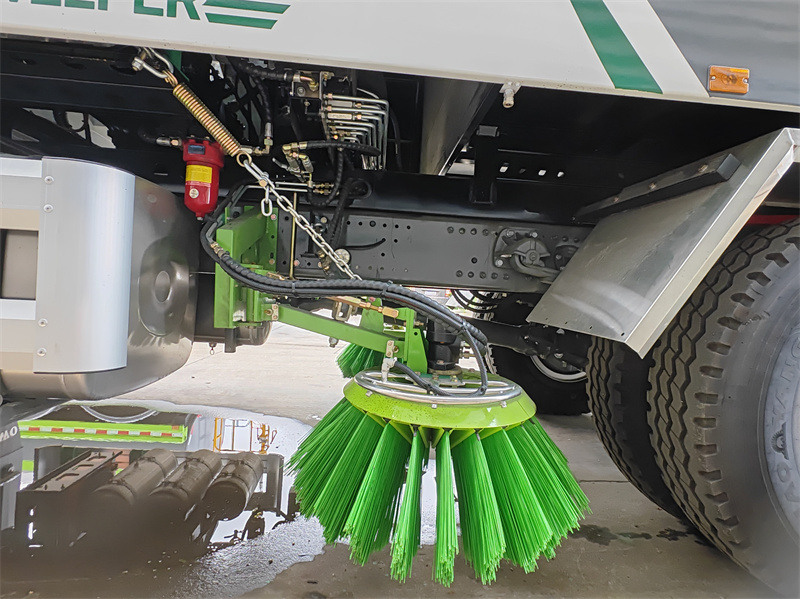

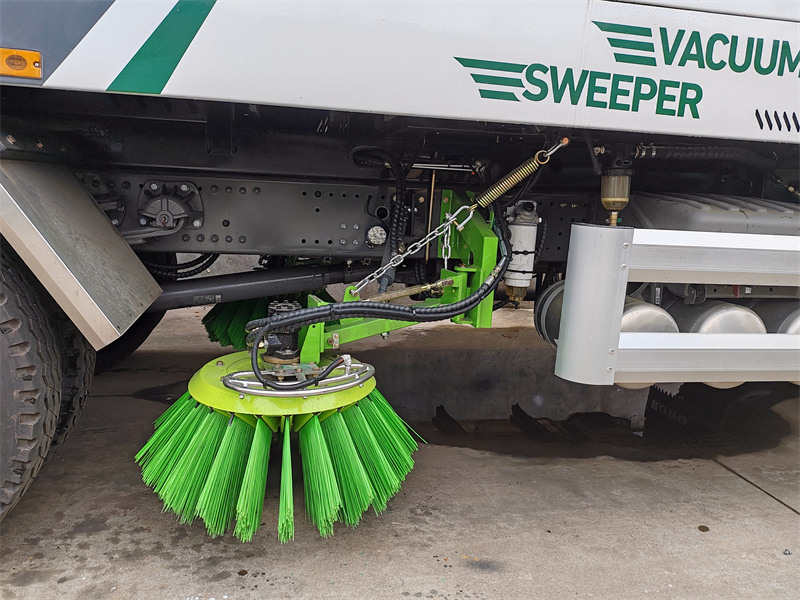

  • sweeping brushes

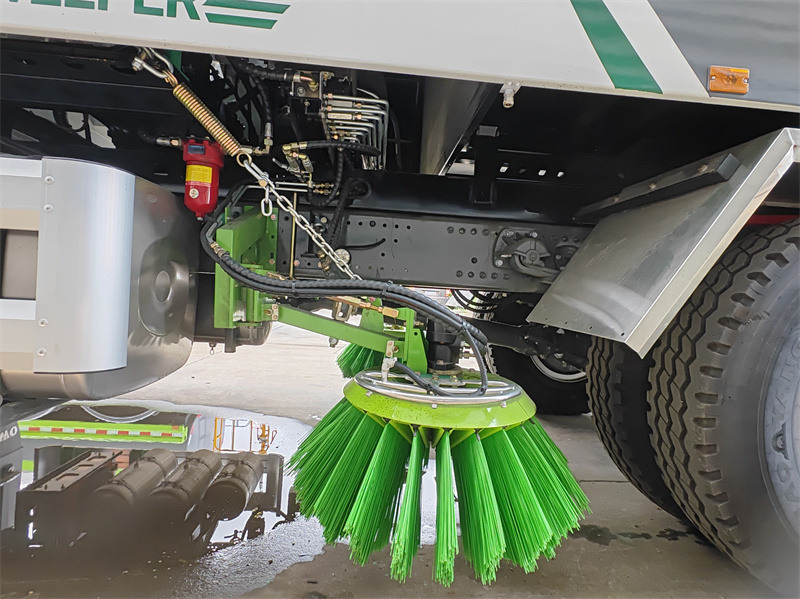

  • sweeping brushes

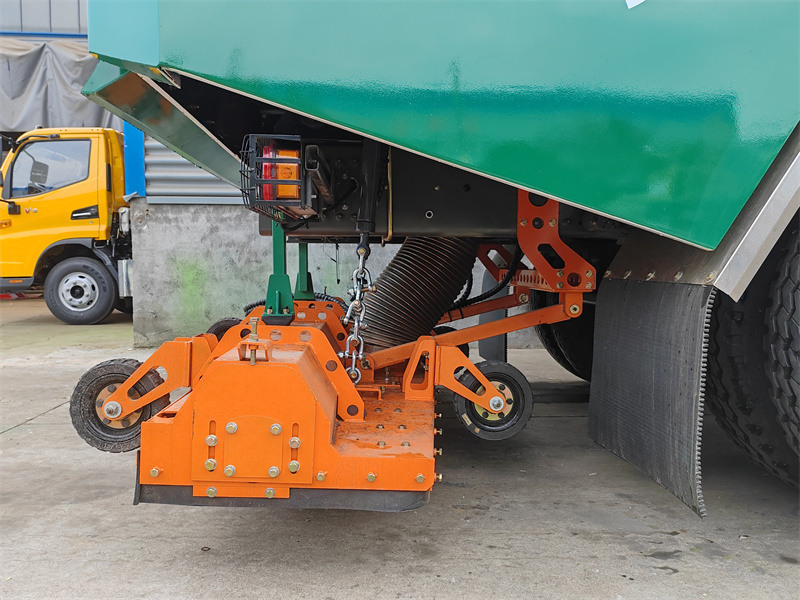

  • sucker

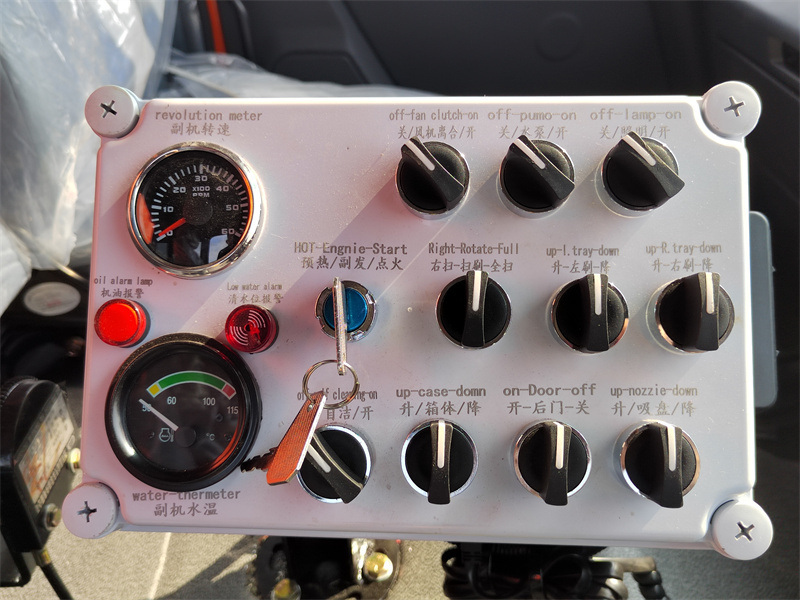

▶ Cab Electronic Control System:

The cab integrates an electronic control box with a logically laid-out, easily accessible function button layout. Key control functions include:



• Fan clutch on/off

• Water pump on/off

• Lights on/off

• Auxiliary engine preheating/ignition

• Left and right sweeping brush lifting

• Right sweep/full sweeping mode switching

• Sucker lifting

• Dust canister lifting

• Rear door opening/closing

• Dust canister self-cleaning on/off

• Auxiliary engine tachometer/coolant temperature gauge

• Oil level alarm, coolant level alarm, and other warning functions

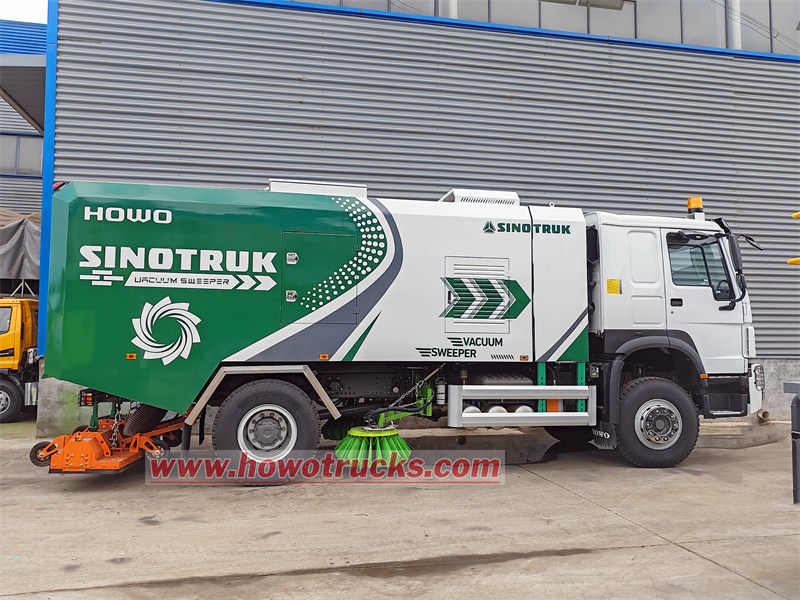

SINOTRUK HOWO vacuum sweeper truck with brush

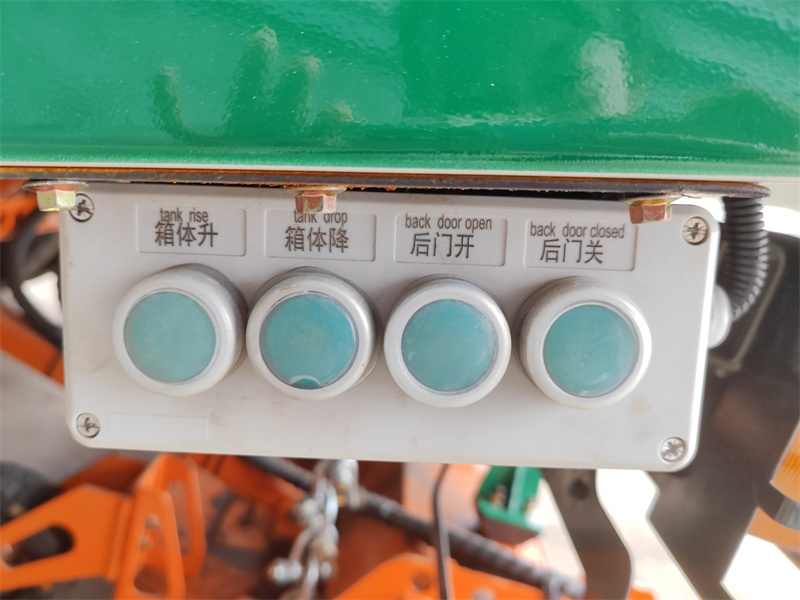

▶  Rear control box:

An independent control box is located under the rear of the vehicle, supporting operations such as raising/lowering the cargo box and opening/closing the rear door.



 Rear control box



▶  Working Principle:

This vehicle employs an integrated "sweeping-washing-vacuuming" operation process. During operation, the auxiliary engine drives the Weiye blower to create a negative pressure environment inside the garbage bin, simultaneously powering the water pump and sweeping brushes.



The sweeping brushes first gather road debris and gravel to the center of the vehicle's underside. A low-pressure water system sprays water to flush away stubborn stains. Under the strong negative pressure generated by the blower, the gathered wastewater, garbage, and dust mixture is instantly sucked in by the suction cups and transported along pipes into the garbage bin for storage and settling. Cleaning water is supplied by a two-cubic-meter water tank and filtered before being discharged to prevent secondary dust generation. The entire process is integrated into the cab's electronic control system; one-button operation completes cleaning, sweeping, and wastewater recovery. The operating width is ≥3.5 meters, offering high efficiency and thorough cleaning.

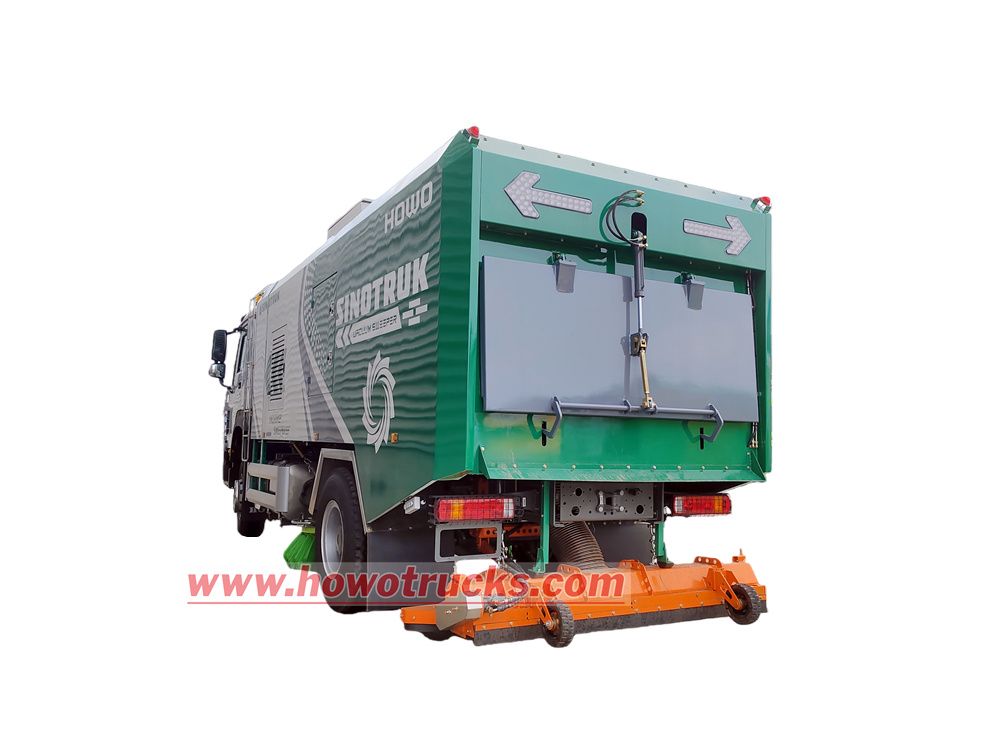

HOWO vacuum road sweeper with brush

◊ Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Service!



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





Manufactured at our professional heavy-duty vehicle factory, this Sinotruk HOWO 10 cubic meter sweeper truck is a professional sanitation vehicle that integrates efficient sweeping, intelligent control, and durability. It is suitable for various urban and factory road sweeping and cleaning operations

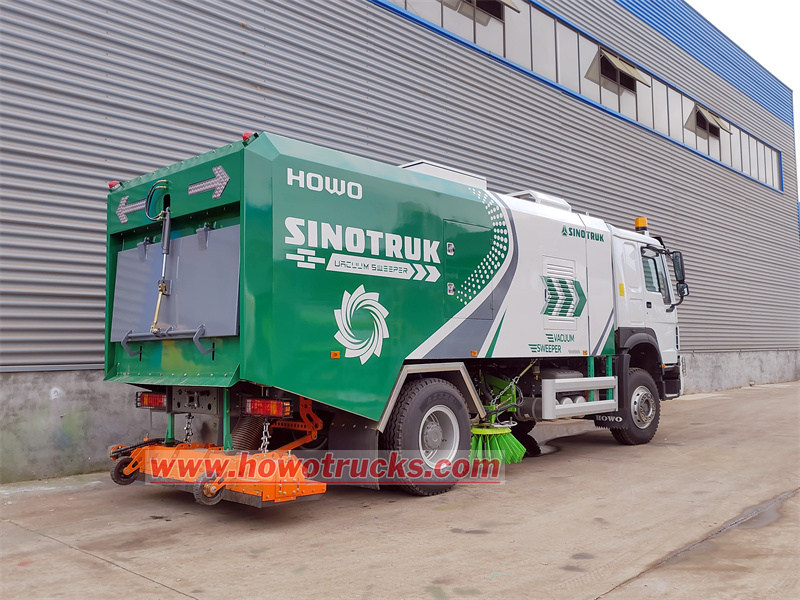

HOWO 10 Cubic Meters Vacuum Cleaner Cleaning Sweeping
