HOWO Heavy-Duty Wrecker Towing Truck Technology Analysis

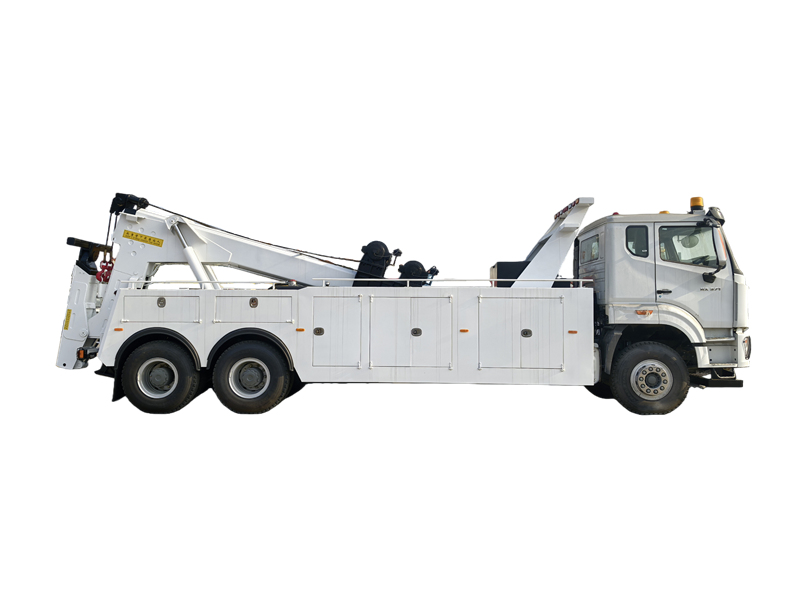

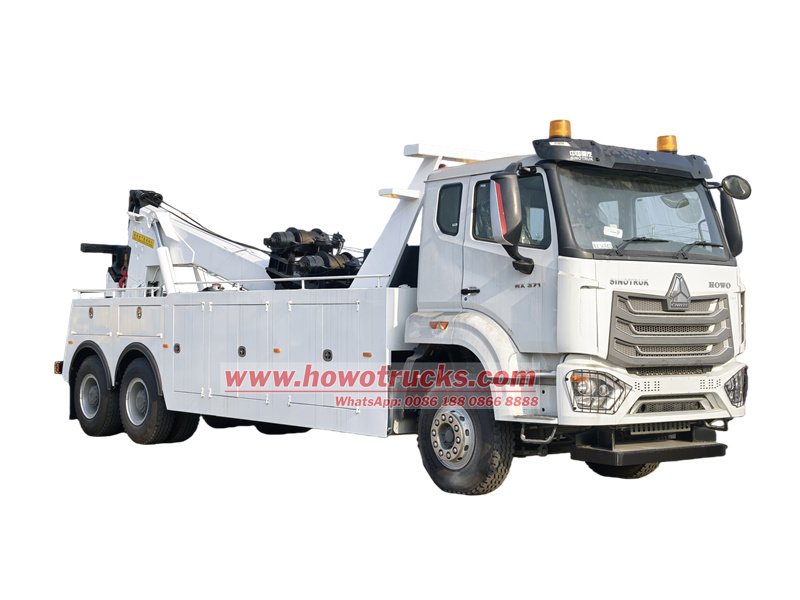

▶ What is a HOWO heavy-duty tow truck?

HOWO Heavy-Duty Wrecker Tow Truck is a common special vehicle used in road rescue, featuring both lifting and towing capabilities. It adopts a HOWO special wrecker chassis, with a load capacity 39% higher than that of ordinary chassis, outstanding towing performance, and better passability. The U-shaped lifting boom is designed with a telescopic function. The vehicle can be equipped with various working attachments, enabling multiple functions such as lifting, towing, hauling, and pulling. It is widely applicable for rescuing large vehicles that have overturned, rolled off the road, or fallen into ditches.

Chassis	HOWO NX 6×4
Engine	WD615.47, 371HP, diesel engine
Max. lifting capacity	16000 kg
Fully extended lifting capacity	10000 kg
Max. lifting capacity of boom	30000 kg
Max. lifting height of boom	5260 mm
Number of winches	2
Winch traction force	200 kN

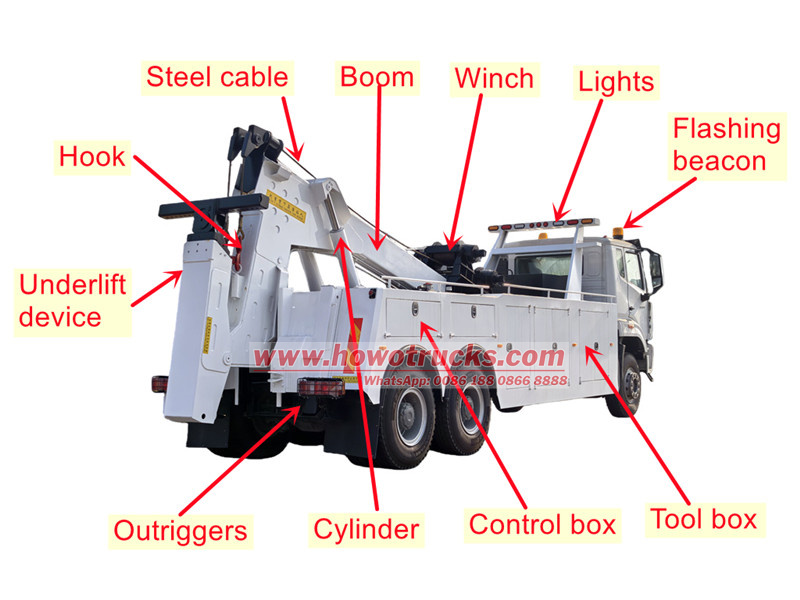

▶ Structure of HOWO Heavy-Duty Rescue Towing Truck

The HOWO NX Heavy-Duty Tow Wrecker mainly consists of six major components: the chassis, lifting mechanism, towing arm mechanism, luffing mechanism, hydraulic system, and control system.

• Chassis: Based on the HOWO NX special wrecker chassis, providing load-bearing capacity and power output.

• Lifting mechanism: Includes winch, boom, and hook, used for lifting the front or frame of a disabled vehicle.

• Under-lift mechanism: Multi-section telescopic towing arm, equipped with L-shaped wheel clamps or fork attachments to directly lift wheels or axles, with fastening devices at the end to secure the wheels.

• Luffing mechanism: Driven by hydraulic cylinder, it adjusts the angle and height of the boom and towing arm for precise positioning and load balancing.

• Hydraulic system: Composed of a power take-off (PTO) driven pump, multi-way directional valve, hydraulic cylinders, and tank, providing power to all mechanisms.

• Control system: Uses a side-mounted handle or remote control to operate the multi-way valve, coordinating lifting, towing, and luffing movements.

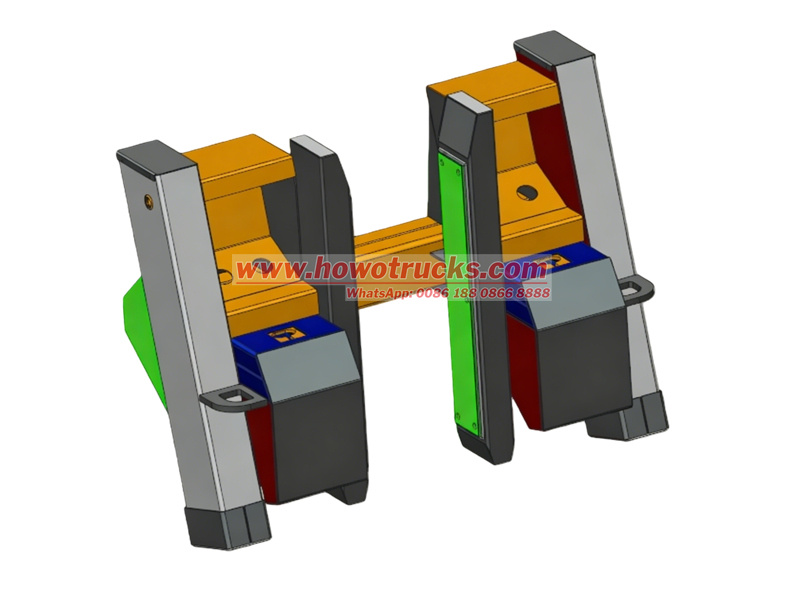

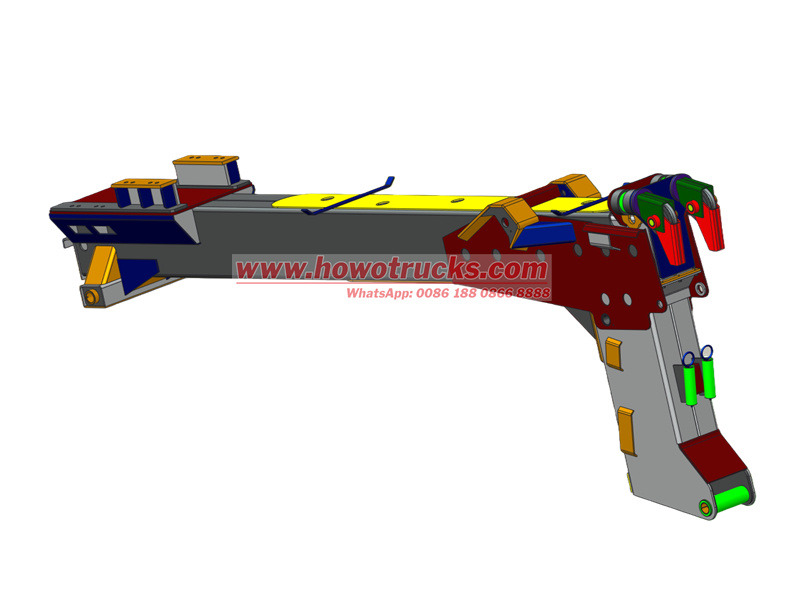

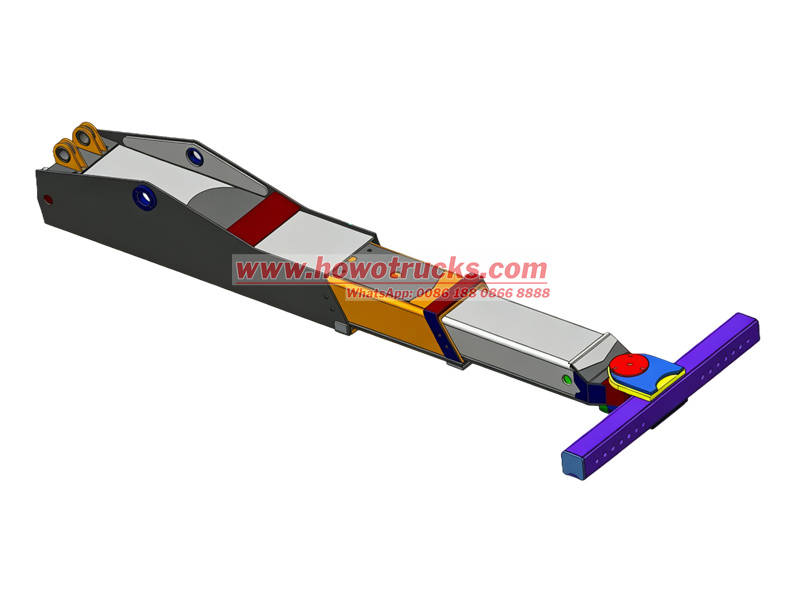

▶ HOWO Heavy-duty Rescue Tow Wrecker Drawing
